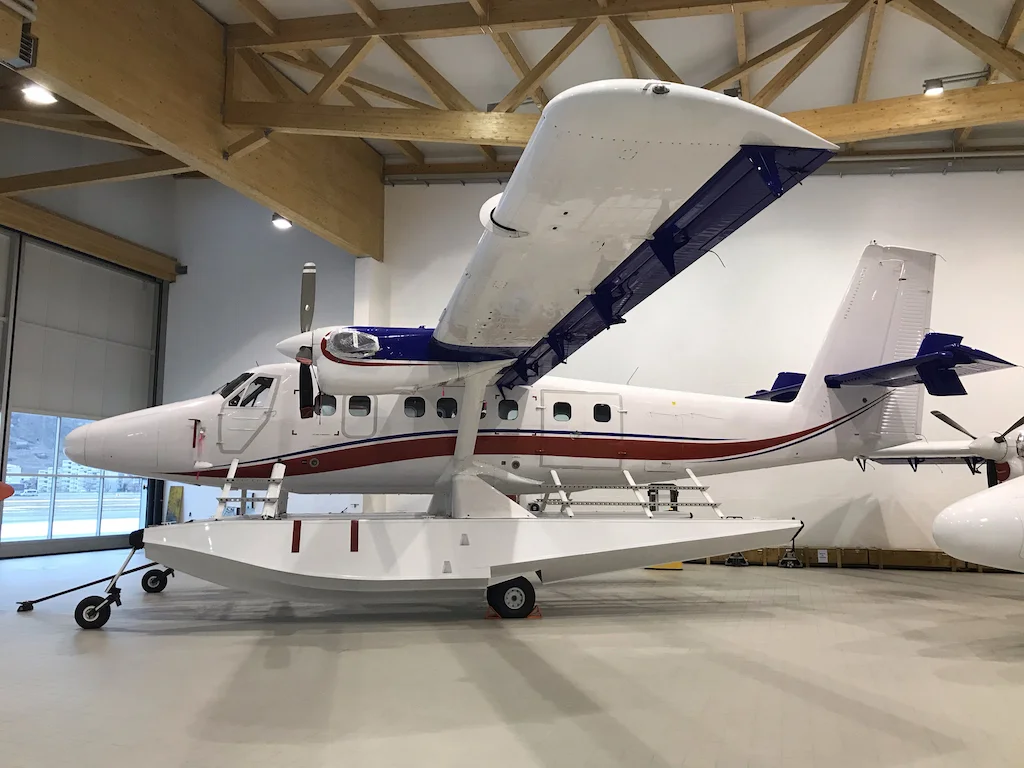

1969 DE HAVILLAND TWIN OTTER
DHC-6-300 SN 244




AIRFRAME

35,530 Hours     78,195 Landings
· Aircraft Weight 7,518lbs / 3,417Kg
· As of December 12, 2018

Airframe Station 218:
· P/N C6MK1553-1
· 29,945 Hours / 61,268 Cycles

Next EMMA Inspection: 43

Cabin:
· New APST Commuter Interior for 19 Passengers
· Passenger Seats in Blue Leather


Highlights

· Wipaire Float Kit TBD
· Passenger individual LED reading light
· All mandatory AD and SB Complied With.
· Fresh Amphibious Float Overhaul
· New Garmin 600 RUAG STC
· New APST57 Hardwall Interior Cockpit & Cabin
· Fresh Exterior White Paint
· Delivered with Airstairs or Swinging Door

ENGINES

Description:Pratt & Whitney PT6A-27
Engine: Left Right
Serial Number: PCE-41504 PCE-50882
Total Time: 13,427 Hours 5,594 Hours
Total Cycles: 11,437 Cycles 4,869 Cycles
Times since Overhaul: 398 Hours 1,675 Hours
Time Since Hot Section: 398 Hours 719 Hours

PROPELLER

Description: Hartzell HC-B3TN-3DY
Engine: Left Right
Serial Number: BUA30465 BUA21022
Time Since Overhaul: 1,113 Hours 1,113 Hours
Date Last Overhaul: October 2015 February 2015

WINGS

Engine: Left Right
Part Number WR6-1002-59 WR6-1002-61
Serial Number: 155 155
Time Remaining: 27,919 27,919
Cycles Remaining: 58,872 58,872


AVIONICS

Flight Instruments Equipment (RUAG EASA STC APPROVAL)
· Audio Control 1 Bendix/King KMA-24H-70
· Audio Control 2 Bendix/King KMA-24H-70
· ELT Kannad 406AP
· Transponder Mode S ELS Garmin GTX 33
· COM/NAV/GPS 1 - 8.33khz Garmin GTN650
· COM/NAV/GPS 1 - 8.33khz Garmin GTN650
· Marker Beacon Bendix/King KR 21
· Radio Altimeter Indicator Bendix/King KRA405B
· Multi Function Display (WX/TF/TERR/NAV) Bendix/King KMD-540
· WX Radar System Bendix/King ART 2000
· EGPWS Computer TAWS Class A Honeywell MARK VI
· DME Transceiver Bendix/King KN-63
· Dual Flight and Navigation Instruments Garmin G600
· Emergency Flight Instruments SAM MD302
· Marine Radio Technisonic TFM-138B

LIFE LIMITED PARTS

ENGINE 1 LLP

LLP Description: Part Number Serial Number Life Limit Remaining
Hub: 3013111 A2481 19,000 Cycles 7,563 Cycles
Impeller: 3013176 A7435 19,000 Cycles 7,563 Cycles
Comp Stage 2: 3013712 A6234 24,000 Cycles 12,563 Cycles
Comp Stage 3: 3011713 B3090 25,000 Cycles 13,563 Cycles
CT Disc: 3013411 23B00 16,000 Cycles 8,790 Cycles
PT Disc: 3022412 A5558 20,000 Cycles 8,563 Cycles
ENGINE 2 LLP
LLP Description: Part Number Serial Number Life Limit Remaining
Hub: 3013111 8648 19,000 Cycles 14,131 Cycles
Impeller: 3013176 A8110 19,000 Cycles 14,131 Cycles
Comp Stage 2: 3013712 A2516 24,000 Cycles 19,131 Cycles
Comp Stage 3: 3011713 30432 25,000 Cycles 20,131 Cycles
CT Disc: 3013411 A9317 16,000 Cycles 10,711 Cycles
PT Disc: 3022412 A3368 20,000 Cycles 15,131 Cycles
