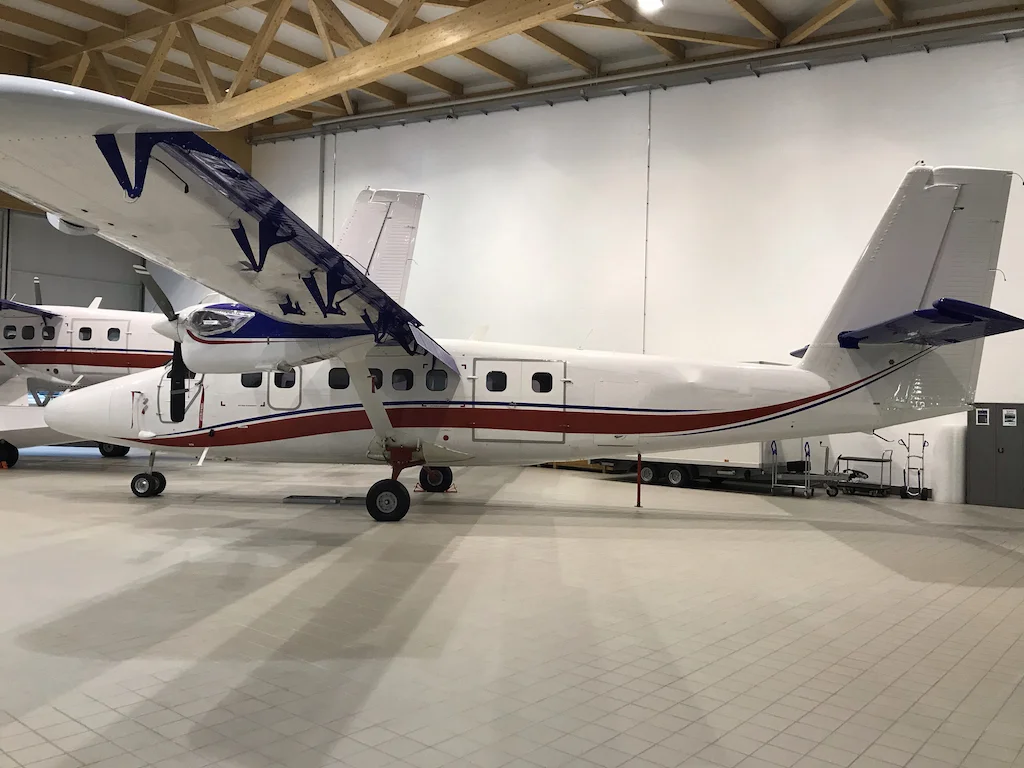

1978 DE HAVILLAND TWIN OTTER
DHC-6-300 SN 593




AIRFRAME

12,456 Hours     19,466 Landings
· Aircraft Weight 7,253lbs / 3,296Kg
· As of December 12, 2018

Airframe Station 218:
· P/N C6FSM2582-1
· 26,543 Hours / 58,534 Cycles

Next EMMA Inspection: 43

Cabin:
· New APST Commuter Interior for 19 Passengers

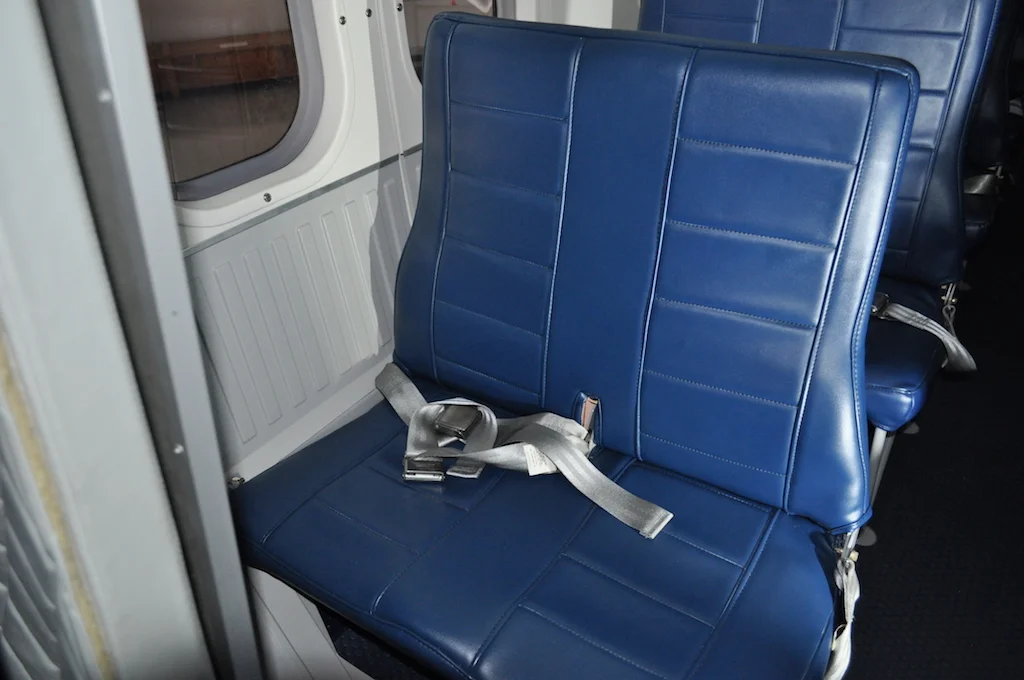

· Passenger Seats in Blue Leather
· With Airstairs Door or Swinging Door Available


Highlights

· Wipaire Float Kit TBD
· Passenger individual LED reading light
· All mandatory AD and SB Complied With.
· Fresh Overhauled Main Gears
· New Garmin 600 RUAG STC
· New APST57 Hardwall Interior Cockpit & Cabin
· Fresh Exterior White Paint
· Delivered with Airstairs or Swinging Door

ENGINES

Description:Pratt & Whitney PT6A-27
Engine: Left Right
Serial Number: PCE-41600 PCE-41602
Total Time: 8,825 Hours 14,315 Hours
Total Cycles: 12,677 Cycles 23,164 Cycles
Times since Overhaul: 6 Hours 1,648 Hours
Cycles since Overhaul: 12 Hours 1,624 Hours

PROPELLER

Description: Hartzell HC-B3TN-3DY
Engine: Left Right
Serial Number: BUA20921 BUA27814
Time Since Overhaul: 2 Hours 2 Hours
Date Last Overhaul: May 2016 May 2016

WINGS

Engine: Left Right
Part Number C6W1002-21 C6W1002-23
Serial Number: 593 593
Time Remaining: 20,544 20,544
Cycles Remaining: 46,534 46,534


AVIONICS

Flight Instruments Equipment (RUAG EASA STC APPROVAL)
· Audio Control 1 Bendix/King KMA-24H-70
· Audio Control 2 Bendix/King KMA-24H-70
· ELT Kannad 406AP
· Transponder Mode S ELS Garmin GTX 33
· COM/NAV/GPS 1 - 8.33khz Garmin GTN650
· COM/NAV/GPS 1 - 8.33khz Garmin GTN650
· Marker Beacon Bendix/King KR 21
· Radio Altimeter Indicator Bendix/King KRA405B
· Multi Function Display (WX/TF/TERR/NAV) Bendix/King KMD-540
· WX Radar System Bendix/King ART 2000
· EGPWS Computer TAWS Class A Honeywell MARK VI
· DME Transceiver Bendix/King KN-63
· Dual Flight and Navigation Instruments Garmin G600
· Emergency Flight Instruments SAM MD302
· Marine Radio Technisonic TFM-138B

LIFE LIMITED PARTS

ENGINE 1 LLP

LLP Description: Part Number Serial Number Life Limit Remaining
Hub: 3013111 A3662 19,000 Cycles 6,323 Cycles
Impeller: 3013176 4D704 19,000 Cycles 14,508 Cycles
Comp Stage 2: 3013712 A6693 24,000 Cycles 11,323 Cycles
Comp Stage 3: 3011713 B3887 25,000 Cycles 12,323 Cycles
CT Disc: 3013411 8H672 16,000 Cycles 10,356 Cycles
PT Disc: 3022412 A6265 20,000 Cycles 7,323 Cycles
ENGINE 2 LLP
LLP Description: Part Number Serial Number Life Limit Remaining
Hub: 3013111 5C663 19,000 Cycles 6,565 Cycles
Impeller: 3013176 5B986 19,000 Cycles 12,700 Cycles
Comp Stage 2: 3013712 A001F5YF 24,000 Cycles 22,376 Cycles
Comp Stage 3: 3011713 A001FDLY 25,000 Cycles 23,376 Cycles
CT Disc: 3013411 12A943 16,000 Cycles 13,972 Cycles
PT Disc: 3022412 5N267 20,000 Cycles 13,700 Cycles
